Intelligent Manufacturing Transformer Radiator Production Line

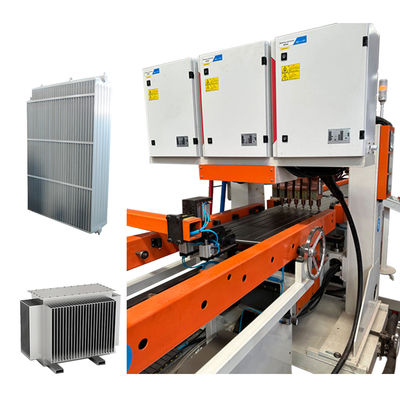

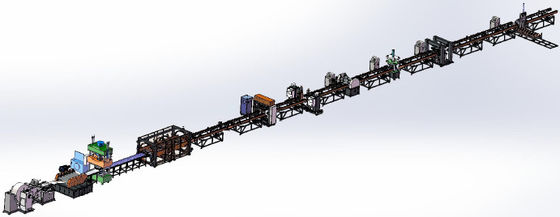

Large Image : Intelligent Manufacturing Transformer Radiator Production Line

Product Details:

Place of Origin:	China
Brand Name:	Trintfar
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10000~50000
Packaging Details:	Wooden brackets/wooden cases
Delivery Time:	90~120
Payment Terms:	L/C, D/A, D/P, T/T

Contact Now

Intelligent Manufacturing Transformer Radiator Production Line

Description

Automatic Production Line:	Comprehensive	Flexible Production:	Intelligent Manufacturing
Automation:	Automation	Warranty:	1 Year Warranty
Specification:	Other	Origin:	China
Highlight:	Transformer Radiator Production Line , Intelligent Transformer Radiator Production Line

Product Description

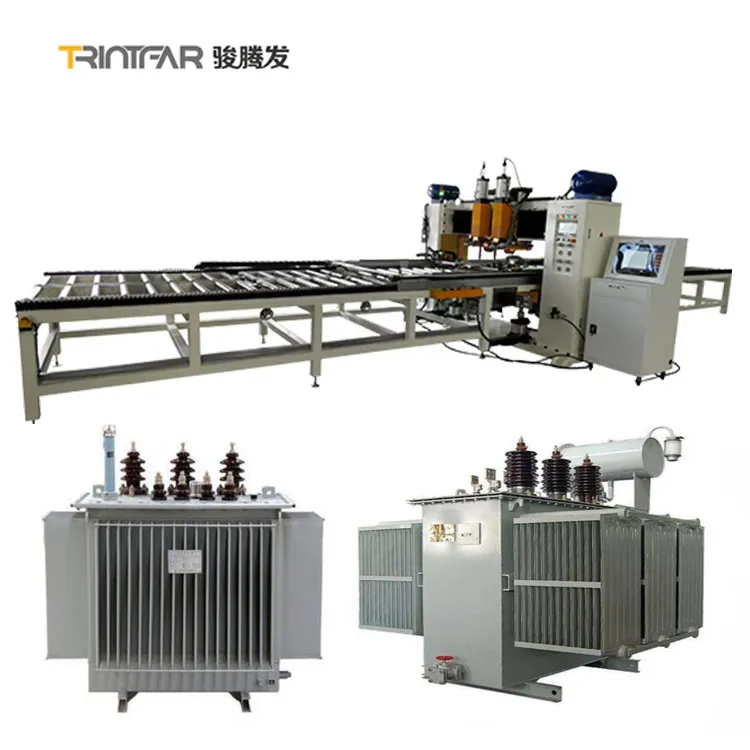

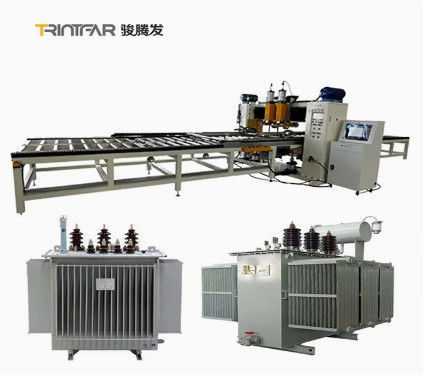

Intelligent Manufacturing Transformer Radiator Production Line 0

Intelligent Manufacturing Transformer Radiator Production Line 1

Feature:
·1. Roll Form Press Controlled by a precision servomotor, the Roll Form Press machine produces panels of variable length according
to the chosen profile and end detail. Forming and feeding rollers work in combination with a press tool to form panels in a fully
automated process. ·

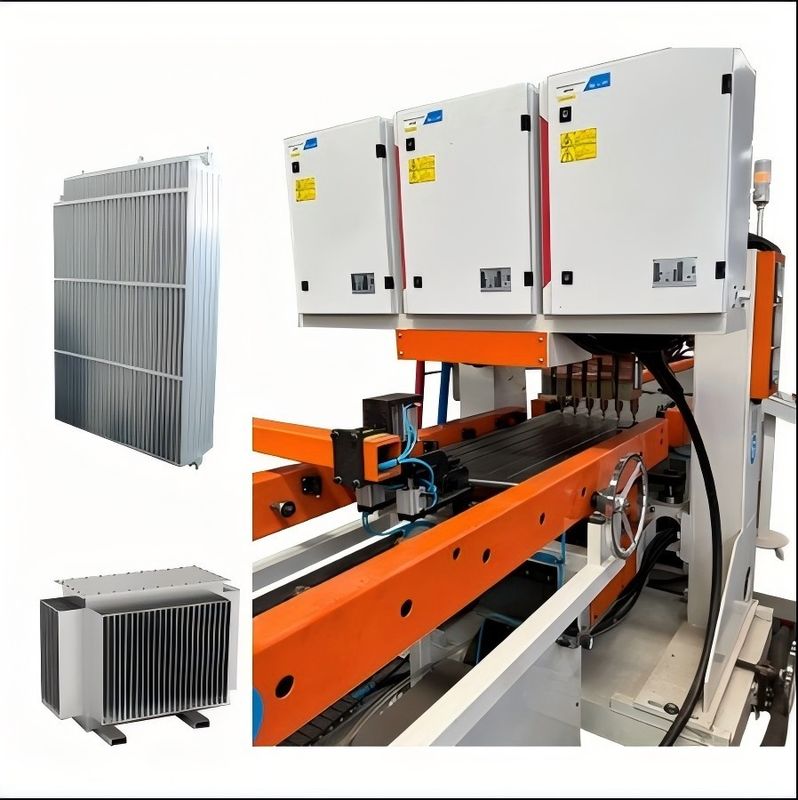

2. Multi-Spot Welder The Multi-Spot Welder makes up to rows of spot welds along the ribs through the length
of the panel. Software-controlled servo indexing of the panel assembly assures symmetrical positioning of spots for optimal
pressure distribution. ·
3. Seam Welder The Seam Welder joins the edges of the panels through resistance welding. Each
copper-welding wheel is internally cooled, without the need for an external water system. As an automated solution, the seam is
welded by dual welders for the longitudinal sides of the panel and by a third welder for the panel ends. As a manual solution, the
operator controls the position of the panel relative to the welding wheels and rotates the panel in a single motion.

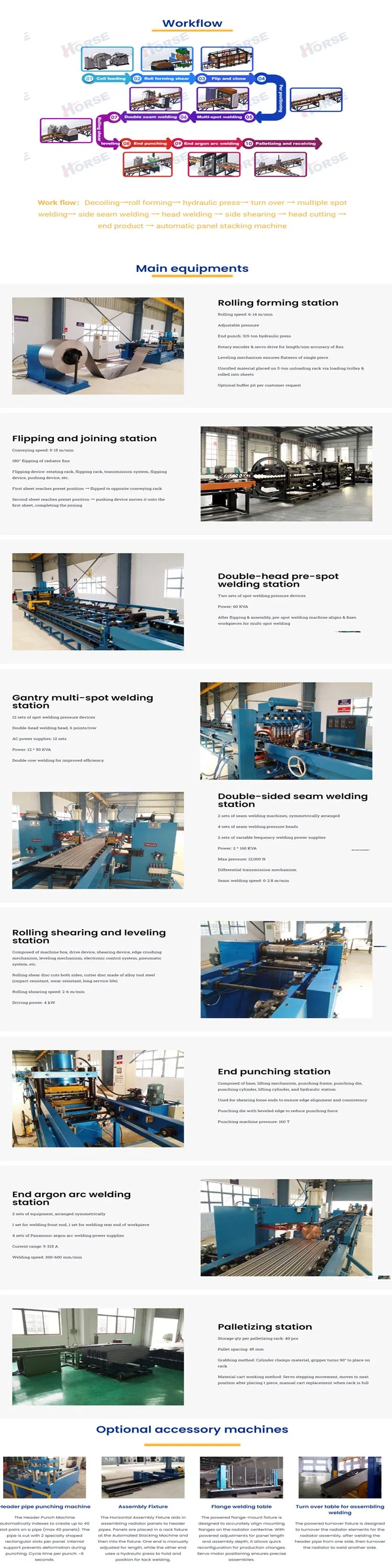

Work flow

Decoiling - roll forming -hydraulic press -turn over -multiple spot welding -side seam welding -head welding -
side shearing -head cutting -end product -automatic panel stacking machine

Specification

BVM-170KVA	parameters
Input voltage	380±10% (three-phase) 50HZ
Input power	2x250KVA
Secondary Voltage	11.3V
Maximum short circuit current	50KA
Insulation resistance	Input power to the fuselage insulation resistance ≥ 2.5MΩ
Working environment	temperature≤40ºC, humidity≤90%
Cylinder model	*Φ16080**
Maximum working pressure	12000N
Air source pressure	0.6MPa
Water source pressure	0.15MPa~0.30MPa
Water flow	30L/min
Welding wheel diameter	280mm
