Transformer Radiator Production Line Production Radiator Machine

Feature:
·1. Roll Form Press Controlled by a precision servomotor, the Roll Form Press machine produces panels of variable length according
to the chosen profile and end detail. Forming and feeding rollers work in combination with a press tool to form panels in a fully
automated process. ·

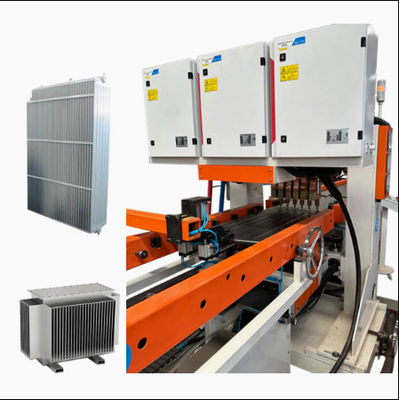

2. Multi-Spot Welder The Multi-Spot Welder makes up to rows of spot welds along the ribs through the length
of the panel. Software-controlled servo indexing of the panel assembly assures symmetrical positioning of spots for optimal
pressure distribution. ·
3. Seam Welder The Seam Welder joins the edges of the panels through resistance welding. Each
copper-welding wheel is internally cooled, without the need for an external water system. As an automated solution, the seam is
welded by dual welders for the longitudinal sides of the panel and by a third welder for the panel ends. As a manual solution, the
operator controls the position of the panel relative to the welding wheels and rotates the panel in a single motion.
Work flow

Decoiling - roll forming -hydraulic press -turn over -multiple spot welding -side seam welding -head welding -
side shearing -head cutting -end product -automatic panel stacking machine
