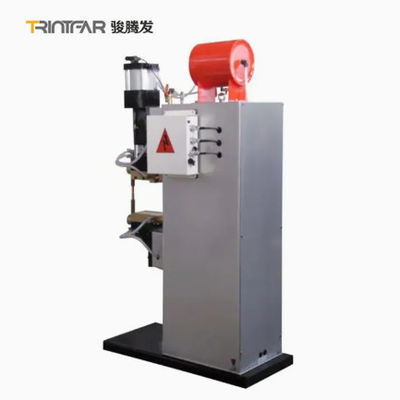

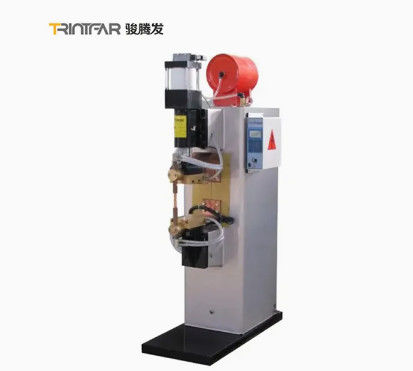

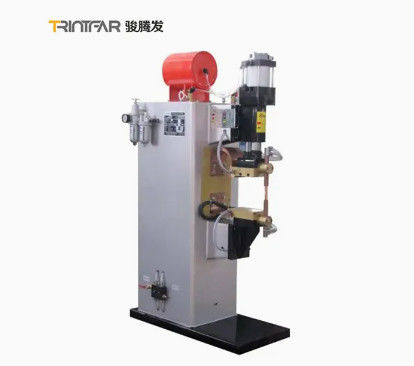

Resistance Spot Welding Machines Price For Spot Welder Welders

Resistance Spot Welding Machines Price For Spot Welder Welders
Resistance Spot Welding Machines Price For Spot Welder Welders
Resistance Spot Welding Machines Price For Spot Welder Welders Resistance Spot Welding Machines Price For Spot Welder Welders Resistance Spot Welding Machines Price For Spot Welder Welders Resistance Spot Welding Machines Price For Spot Welder Welders Resistance Spot Welding Machines Price For Spot Welder Welders

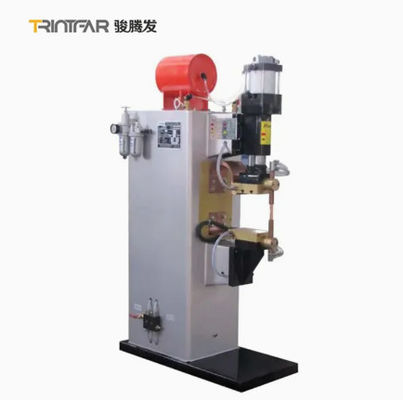

Large Image :  Resistance Spot Welding Machines Price For Spot Welder Welders

Product Details:
Place of Origin: China
Brand Name: Trintfar
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 4000~8000
Packaging Details: Wooden brackets/wooden cases
Delivery Time: 60~90
Payment Terms: L/C, D/A, D/P, T/T
Contact Now

Resistance Spot Welding Machines Price For Spot Welder Welders

Description
Customization:: Available Cooling Way:: Water Cooling
Control:: Semi-Automatic
Highlight:

Resistance Spot Welding Machines Sale

,

Resistance Spot Welding Machines

,

Resistance Spot Welding Machines Price

Product Description


Resistance Spot Welding Machines Price For Spot Welder Welders 0
Product Description

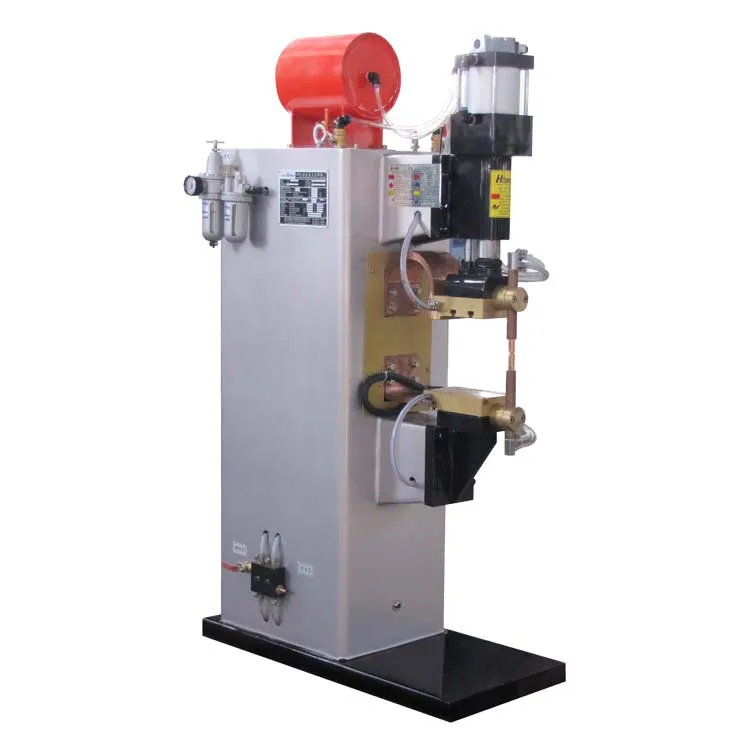

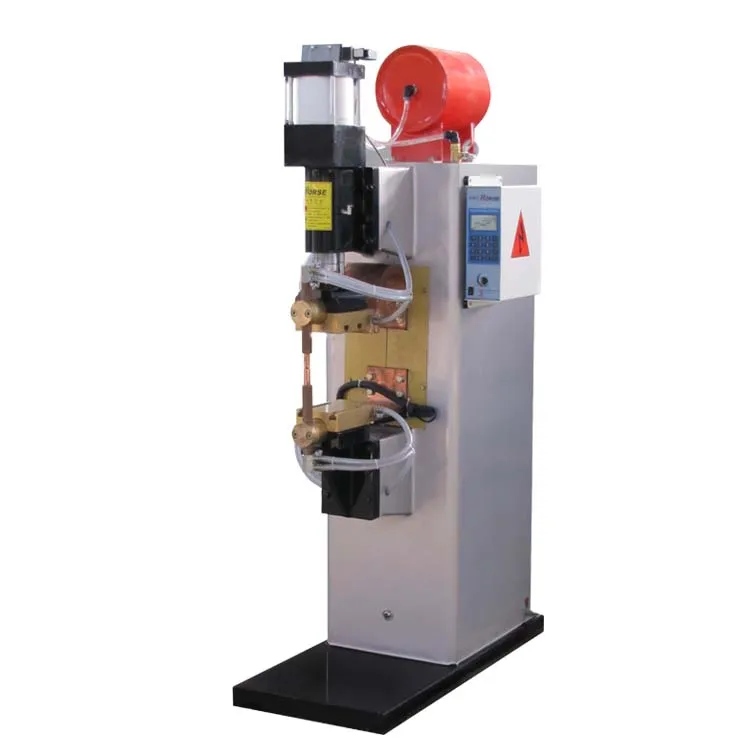

This type of AC spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the workpieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.

Resistance Spot Welding Machines Price For Spot Welder Welders 1Resistance Spot Welding Machines Price For Spot Welder Welders 2

Features:
* The special design of one body tube cylinder can guarantee the welding stability and velocity
* Multi-pass water cooling system make sure the reliability of long time working.
* Spot and projection welding functions.
* Computer control system with steady-voltage and current, Multi-Time Discharge(MTD], can satisfy various working requirements
with ease.
* Can weld iron, copper, aluminum

Item
Model
DN-25
DN-35
DN-50
DN-75
DN-100
DN-150
DN-200
Rated capacity
KVA
25
35
50
75
100
150
200
Rated Primary voltage
V
380
380
380
380
380
380
380
Rated frequency
Hz
50/60
50/60
50/60
50/60
50/60
50/60
50/60
Maximum welding input
KVA
38
54
70
146
216
340
450
Rated duty cycle
%
50
50
50
50
50
50
50
Arm length
mm
340
380
380
380
380
450
450
Maximun compression
N
2500
4700
4700
7300
7300
12000
12000
Electrode stroke
mm
60
80
80
80
80
100
100
Welding capability
(Low carbon steel)
mm
2.0+2.0
2.5+2.5
3.0+3.0
4.0+4.0
4.5+4.5
5.0+5.0
6.0+6.0

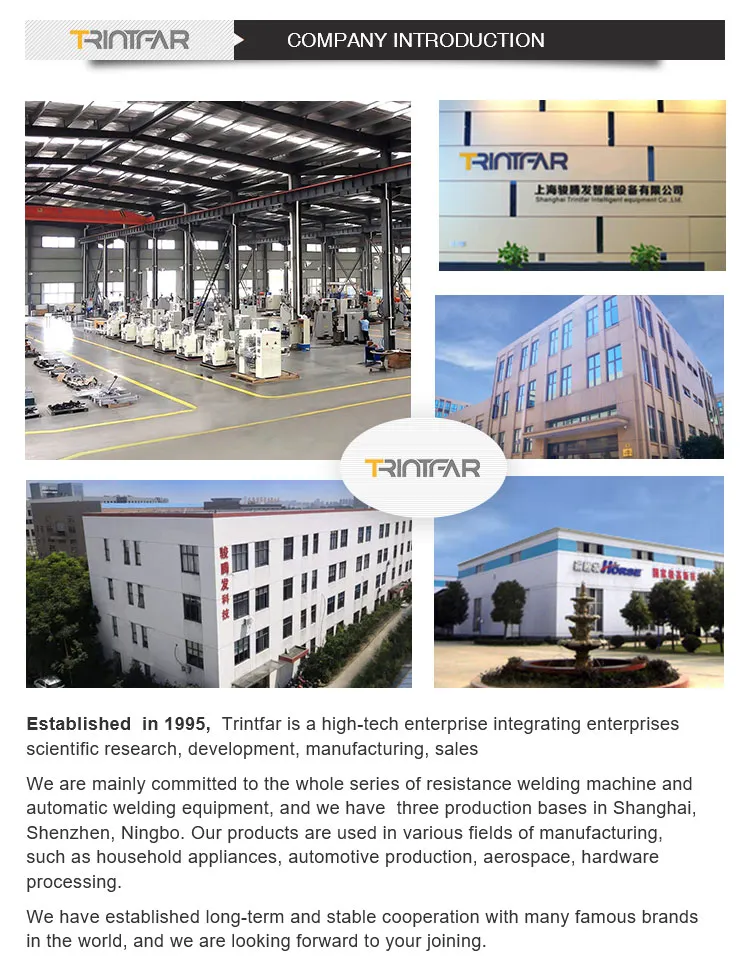

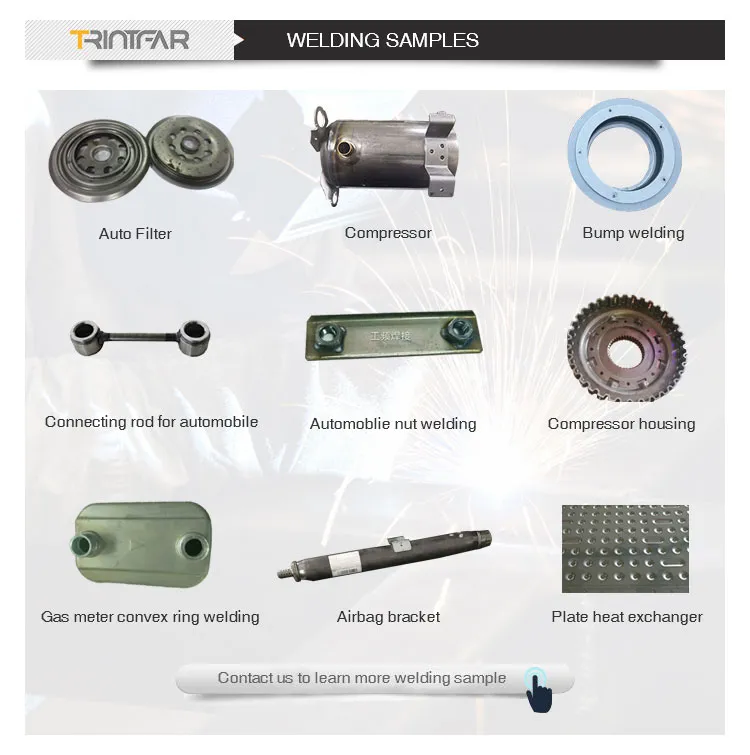

Resistance Spot Welding Machines Price For Spot Welder Welders 3Resistance Spot Welding Machines Price For Spot Welder Welders 4Resistance Spot Welding Machines Price For Spot Welder Welders 5Resistance Spot Welding Machines Price For Spot Welder Welders 6Resistance Spot Welding Machines Price For Spot Welder Welders 7Resistance Spot Welding Machines Price For Spot Welder Welders 8Resistance Spot Welding Machines Price For Spot Welder Welders 9Q Are you a trading company or a factory?
A We are an integrated industry and trade, and have our own factory.

Q Where is your factory located?
A Our factory is located in Songjiang district, Shanghai of China. In addition, we also have factories in Dongguan and Ningbo.

Q Can you customize the machine?
A We support OEM/ODM service and can customize the machine according to your requirements.

Q What is the MOQ?
A According to the customer's requirements.

Q What are your services during the purchase process?
A Pre-sales: Visit the factory, Technical solutions and program design services, Proofing services, Sample testing services.
On-sales: Technical training, Installation and commissioning services.
After-sales: Free non-wearable parts, Repair service, Video technical support, Online remote guidance.


Q How long is your warranty period?
A We offer a one-year warranty.

Q What is the payment terms?
A We ship with full payment, and we can negotiate payment terms.

Q How long is the delivery time?
A Delivery time for standard machines: 7-15 working days
Delivery time for customized machines: According to the degree of customization, about 1-3 months

Q Can you provide samples?
A We provide sampling service, but you need to send us the sample by courier.
