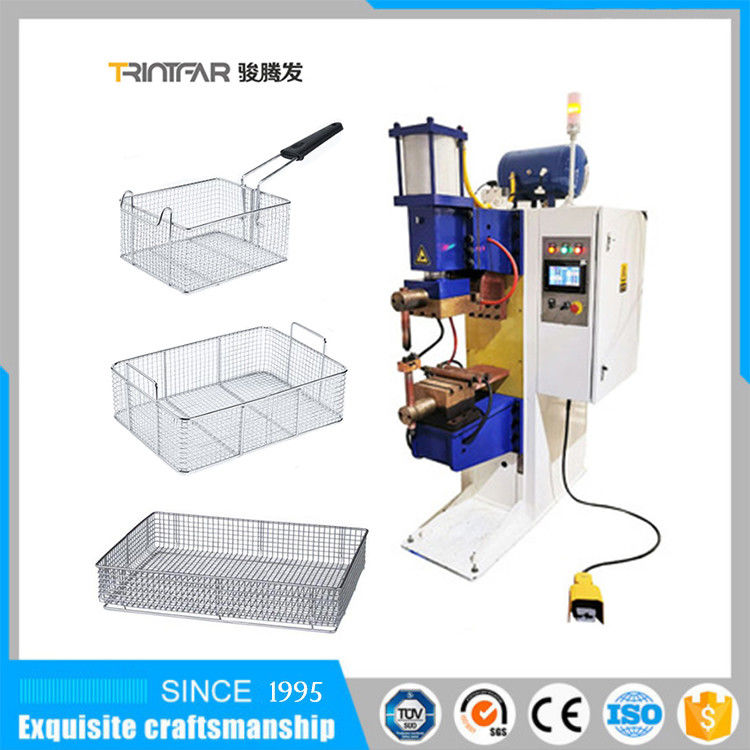

Medium Frequency Resistance Aluminum Plate MF Spot Welding Machine

Medium Frequency Resistance Aluminum Plate MF Spot Welding Machine

Medium Frequency Resistance Aluminum Plate MF Spot Welding Machine

Large Image : Medium Frequency Resistance Aluminum Plate MF Spot Welding Machine

Product Details:

Place of Origin:	China
Brand Name:	TRINTFAR
Certification:	CE
Model Number:	MD-20

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 1000-3000 Set
Packaging Details:	wooden box
Delivery Time:	Within 90 days of the final payment
Payment Terms:	L/C, D/A, D/P, D/P, T/T
Supply Ability:	500 Per year

Contact Now

Medium Frequency Resistance Aluminum Plate MF Spot Welding Machine

Description

Product Name:	Medium Frequency Aluminum Plate Spot Welding Machine	Electrode Stroke:	50-100mm
Cooling Water:	20-60L/min	Electrode Pressure:	1200N-18000N
Rated Duty Cycle:	50%	Maximum Short Current:	10KA-120KA
After-sales Service Provided:	Video Technical Support	Product Name:	Spot Welding Machine
Highlight:	MF Medium Frequency spot welding machines , MF spot welding machine , MF resistance welding machine

Medium frequency aluminum plate spot welding machine

Feature

The power supply unit's duty are balanced. Three phase power make MD frequency inverter more adaptable in winding and pressure
of wire.
More preaser, faster current control, can analyse parameters more and faster compare with power frequency system.
Faster to set up current, the speed is 20 folds quicker than traditional technic
Process more reliable: the majority of the application of solder DC welding metal effect will be even better.
Reduce operating costs, including energy savings each and every point of welding as well as shortening the welding cycle.
Save energy :especially suitable for welding thick workpieces and high-conductivity metal .such as aluminum and galvanized
steel sheet.etc

Specification

Item Model	Maximum Short Current KA	Rated Duty Cycle %	Secondary Voilage V	Rated Power KVA	Electrode Pressure N	Electrode Stroke mm	Cooling Water Lmim
MD-10T	10	50	≈9.8	≤20	1200	50	20
MD-20	20	50	≈9.8	≤50	4700	80	24
MD-25	25	50	≈9.8	≤70	4700	80	24
MD-40	40	50	≈11.6	≤120	7300	80	30
MD-60	60	50	≈11.6	≤160	12000/18000	100	50
MD-80	80	50	≈11.6	≤240	12000/18000	100	50
MD-120	120	50	≈11.6	≤300	18000	100	60

Medium Frequency Resistance Aluminum Plate MF Spot Welding Machine 0

Medium Frequency Resistance Aluminum Plate MF Spot Welding Machine 1

Medium Frequency Resistance Aluminum Plate MF Spot Welding Machine 2

Medium Frequency Resistance Aluminum Plate MF Spot Welding Machine 3

Medium Frequency Resistance Aluminum Plate MF Spot Welding Machine 4

Medium Frequency Resistance Aluminum Plate MF Spot Welding Machine 5

Medium Frequency Resistance Aluminum Plate MF Spot Welding Machine 6

Medium Frequency Resistance Aluminum Plate MF Spot Welding Machine 7
