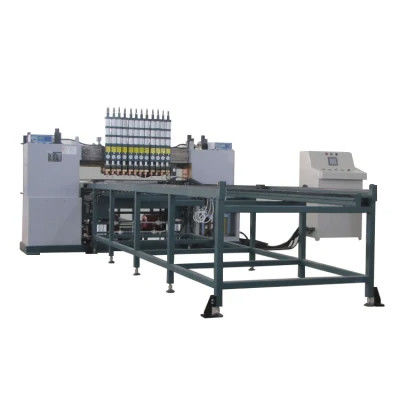

Shopping Trolley Basket Welding Machine Wire Mesh Welder 60KVA

Shopping Trolley Basket Welding Machine Wire Mesh Welder 60KVA
Shopping Trolley Basket Welding Machine Wire Mesh Welder 60KVA
Shopping Trolley Basket Welding Machine Wire Mesh Welder 60KVA Shopping Trolley Basket Welding Machine Wire Mesh Welder 60KVA

Large Image :  Shopping Trolley Basket Welding Machine Wire Mesh Welder 60KVA

Product Details:
Place of Origin: China
Brand Name: TRINTFAR
Certification: CE
Model Number: DNW-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 10000-30000 Set
Packaging Details: wooden box
Delivery Time: Within 90 days of the final payment
Payment Terms: L/C, D/A, D/P, D/P, T/T
Supply Ability: 500 Per year
Contact Now

Shopping Trolley Basket Welding Machine Wire Mesh Welder 60KVA

Description
Product Name: Shopping Trolley Basket Welding Machine / Production Line Machine Type:: Wire Mesh Welding Machine
After-sales Service Provided: Video Technical Support Standard: CE/CCC/ISO
Weight (KG):: 500kg Warranty: 1 Year
Usage:: Welding Machine Rated Capacity: 60 KVA
Highlight:

wire mesh welder 60KVA

,

wire mesh welder high efficiency

,

Shopping Trolley Basket Welding Machine

Shopping Trolley Basket Welding Machine / Production Line

Our machines have been widely applied to various kinds of industries, such as kitchen utensils, automobile making, motorcycle manufacturing, glasses, hardware, household appliances, low-voltage apparatus, elevator, compressor, etc.



Introduction to machine functions

1. This machine is designed as single-electrode welding machine with long arm type X, Y axis automatic mobile feeding system. Only have to change the fixture could you use it to weld different shape of wire mesh.
2. You only have to input the data like the coordinate data of the welding samples, welding current, etc. then start the machine. It will conduct welding automatically. Worker only have to put the material onto certain position then take out the welded product.
3. The structure of the machine is simple, and the assembly is easy. Be able to match with different welding machines.
4. Adopt the servo motor to drive the X, Y axis to run in the PLC preset program. Max to store 5000 welding positions and 18 sets welding models (18 types of welding positions and welding current of wire mesh).
5. Especially suitable for welding iron wire mesh, door reinforcing rib, air conditioner backboard.
6. It is equipped with low cost and low consumption AC power source with stable welding.
7. X direction range: max 900mm Y direction range: max 600mm.

Details of the machine

Option
1:Power Source: Adopt 1 set of 150KVA special resistance welding transformer as the welding power source. Single-spot welding. Continuous duty cycle rate is 50%; the output current is larger than 38000A. The executive standard is GB/15578-2008; the magnetic permeability of forced temperature control cooling water silicon steel sheet is larger than 12000GS; special cooling water subloop; It can ensure the output welding current of the whole machine is constant and powerful in order to obtain high quality, high efficiency, stable welding spots. Option
2: Power Source: Adopt 1 set of 100KVA three-phase DC medium frequency inverter welding source. Duty cycle rate reaches 50%. The three-phase power supply is under rectifying through a special inverter and converted to1000Hz AC voltage and then be transmitted to a medium frequency transformer to be rectified so as to provide DC welding current. Compare with general AC pulse power supply, this kind of power source could be fast and precisely adjusted. Small impact to the power grid and lower requirement for the power grid compare with the single-phase welder of the same capacity. X, Y Axis Automatic Mobile System: The feeding fixture is designed to move within the range of 900*600mm. It is composed of the coding servo motor, precision-finished slide and automatic detecting system. The adjustment is of quick response, high control precision and powerful driving force. This automatic device is designed as X, Y axis mobile working table. Use PLC to store the mobile programming. The setting is easy and convenient.
Specification
Machine Specification
Model
DEW-1000
DNW-2000
DNW-3000
Mesh width
Max.2000 mm
Max.2500 mm
Max.3000 mm
Mesh hole size
100 mm
150 mm
200 mm
300 mm
100 mm
150 mm
200 mm
300 mm
100 mm
150 mm
200 mm
300 mm
Wire diameter
3.0-5.0 mm
3.0-5.0 mm
3.0-5.0 mm
Welding speed
40-80 Times/min
40-80 Times/min
40-80 Times/min
Transformer
125KVA*3
125KVA*4
125KVA*4
125KVA*5
125KVA*5
125KVA*6
Dimensions
8.5 X 2.5 X 1.65 m
9.5 X 3.0 X 1.65 m
12 X 3.5 X 1.65 m
Weight
5500 KG
6500 KG
7500 KG
Note: we can produce the machines according to your requirements.

Shopping Trolley Basket Welding Machine Wire Mesh Welder 60KVA 0

Shopping Trolley Basket Welding Machine Wire Mesh Welder 60KVA 1


Shopping Trolley Basket Welding Machine Wire Mesh Welder 60KVA 2


Shopping Trolley Basket Welding Machine Wire Mesh Welder 60KVA 3
