Automatic BBQ Barbecue Rack Grill Welding Machine Pneumatic Spot Welding Machine

Automatic BBQ Barbecue Rack Grill Welding Machine Pneumatic Spot Welding Machine
Automatic BBQ Barbecue Rack Grill Welding Machine Pneumatic Spot Welding Machine
Automatic BBQ Barbecue Rack Grill Welding Machine Pneumatic Spot Welding Machine Automatic BBQ Barbecue Rack Grill Welding Machine Pneumatic Spot Welding Machine

Large Image :  Automatic BBQ Barbecue Rack Grill Welding Machine Pneumatic Spot Welding Machine

Product Details:
Place of Origin: China
Brand Name: TRINTFAR
Certification: CE
Model Number: MD-50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 1000-3000 Set
Packaging Details: wooden box
Delivery Time: Within 90 days of the final payment
Payment Terms: L/C, D/A, D/P, D/P, T/T
Supply Ability: 500 Per year
Contact Now

Automatic BBQ Barbecue Rack Grill Welding Machine Pneumatic Spot Welding Machine

Description
Product Name: Automatic BBQ Barbecue Rack Grill Pneumatic Spot Welding Machine Machine Type:: Wire Mesh Welding Machine
After-sales Service Provided: Video Technical Support Condition: New
Weight (KG):: 500kg Warranty: 1 Year
Usage:: Welding Machine Rated Capacity: 60 KVA
Highlight:

BBQ grill welding machine

,

Barbecue Rack grill welding machine

,

CE automatic pneumatic spot welding machine

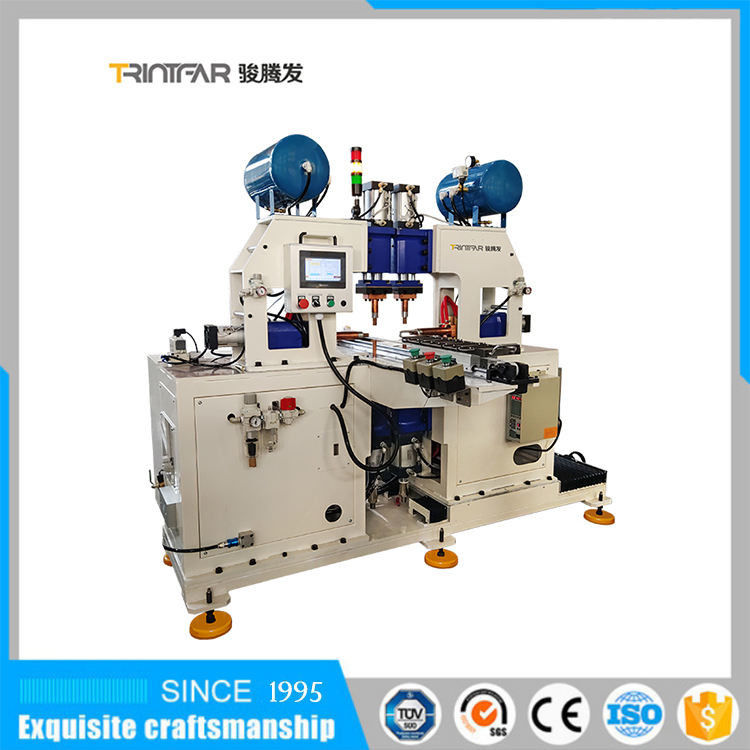

Automatic BBQ Barbecue Rack Grill Pneumatic Spot Welding Machine



This machine is improved by our company according to the needs of customers.the machine has added an intelligent roll mesh system on the basis of the original one,which can adjust the roll mesh speed according to the welding speed of the machine, so as to make the mesh roll even and beautiful.after the mesh roll is bundled, the system will automatically unload the mesh roll, saving labor.

Mechanical advantages:

1 ★ The mesh size is directly set on the touch screen, which is convenient and simple.
2 ★ Vibration device is added to the cross wire feeding system to prevent wire winding.
3 ★ The line wire automatic wire feeding and the cross wire are pre-straightening and cutting.
4 ★ Cross wire adjustment on screen, line wire adjustment need move the welding electrode.
5 ★ The mesh roll length can be set by the control panel.
6 ★ We can easily adjust the welding current when we need to weld different wire diameters.
7★ The finished product roll mesh is smooth and the error of opposite angle line is small.
8 ★ We can set the output and stop the machine automatically after the mesh production finished.
Specification

Item

Model


Maximum Short Current
KA


Rated Duty Cycle
%


Secondary Voilage
V


Rated Power
KVA


Electrode
Pressure
N


Electrode
Stroke
mm


Cooling Water
Lmim

MD-10T

10

50

≈9.8

≤20

1200

50

20

MD-20

20

50

≈9.8

≤50

4700

80

24

MD-25

25

50

≈9.8

≤70

4700

80

24

MD-40

40

50

≈11.6

≤120

7300

80

30

MD-60

60

50

≈11.6

≤160

12000/18000

100

50

MD-80

80

50

≈11.6

≤240

12000/18000

100

50

MD-120

120

50

≈11.6

≤300

18000

100

60






Automatic BBQ Barbecue Rack Grill Welding Machine Pneumatic Spot Welding Machine 0

Automatic BBQ Barbecue Rack Grill Welding Machine Pneumatic Spot Welding Machine 1


Automatic BBQ Barbecue Rack Grill Welding Machine Pneumatic Spot Welding Machine 2


Automatic BBQ Barbecue Rack Grill Welding Machine Pneumatic Spot Welding Machine 3


Tag:

60KVA CE Wire Mesh Welding Machine,

5.5kw spot welding machine for wire mesh,

Wire Mesh Welding Machine 6 KVA
