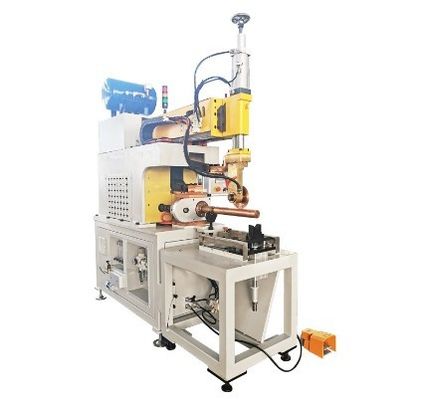

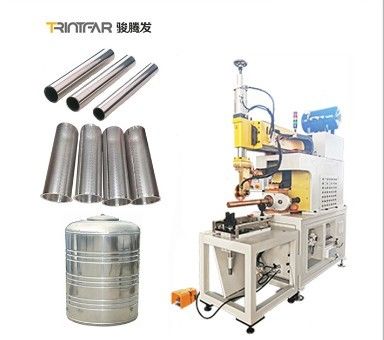

Filter Mesh Cylinder Strainer Tube Longitudinal Seam Welding Machine

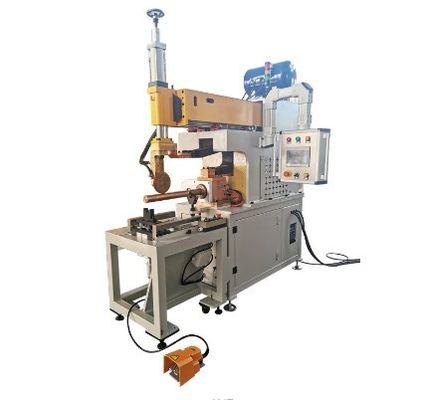

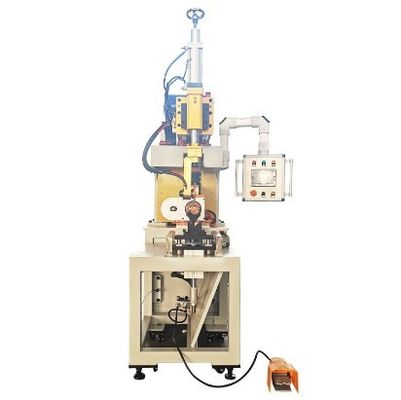

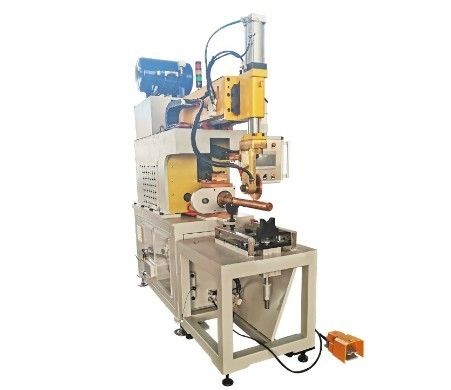

Large Image : Filter Mesh Cylinder Strainer Tube Longitudinal Seam Welding Machine

Product Details:

Place of Origin:	China
Brand Name:	Trintfar
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	3000~10000
Packaging Details:	Wooden brackets/wooden cases
Delivery Time:	90~120
Payment Terms:	L/C, D/A, D/P, T/T

Contact Now

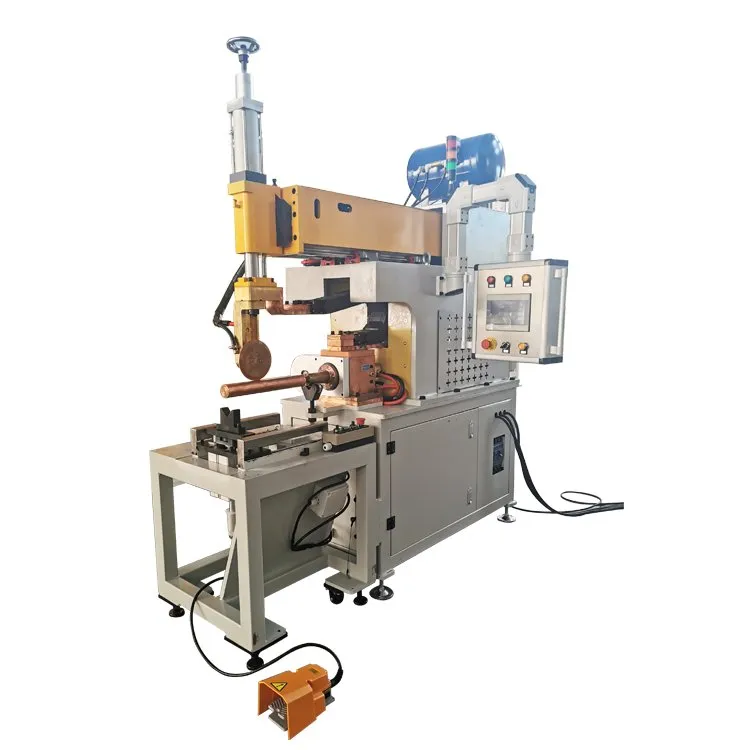

Filter Mesh Cylinder Strainer Tube Longitudinal Seam Welding Machine

Description

Type Of Cooling:	Water Cooling	Control Mode:	5emi-Automatic
Style:	Vertical	Electricity:	AC
Type:	Continuous Seam Welder	Transport Package:	Wooden Box
Specification:	500kg	Application:	Metal Mesh Welding
Reted Capacity:	75kVA	Voltage:	380V/220V
Welding Speed:	0.6-2m/Min	Color:	Customized According Your Requirement
Power(W):	Adjustable

Product Description

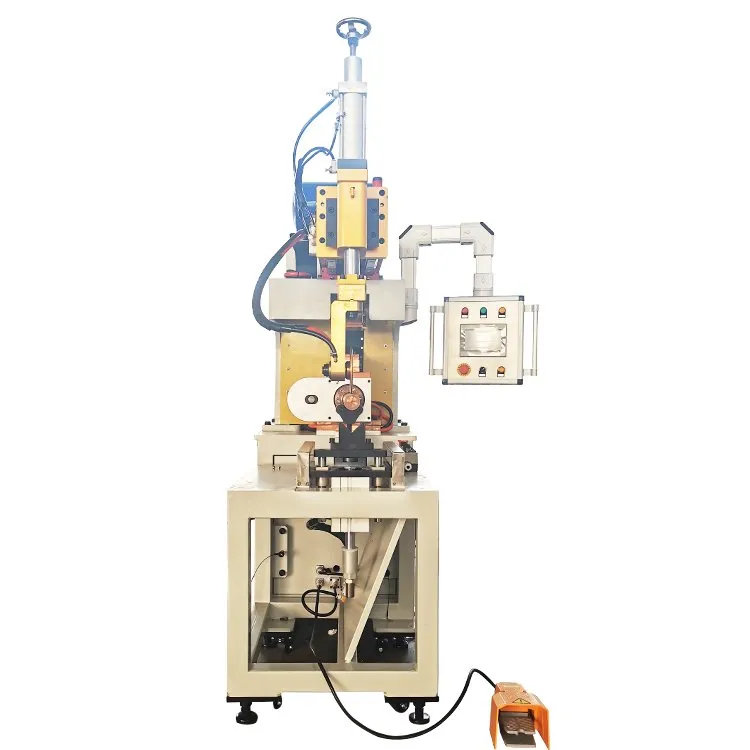

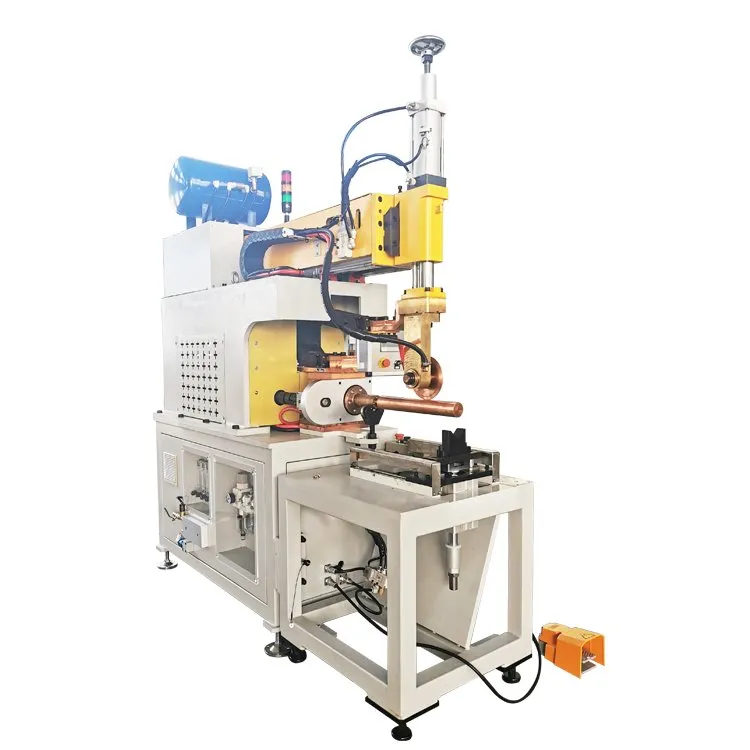

Filter Mesh Cylinder Strainer Tube Longitudinal Seam Welding Machine 0

Product Description
Filter Mesh Cylinder Strainer Tube Longitudinal Seam Welding Machine 1

Filter Mesh Cylinder Strainer Tube Longitudinal Seam Welding Machine 2

Filter Mesh Cylinder Strainer Tube Longitudinal Seam Welding Machine 3

Features:

3phase regulator controls the welding speed uniformly and without jerks.
Longitudinal and horizontal welding make it possible for various jobs and working conditions.
Robust structure capable to withstand heat and maintain welding performance.
The rotation conductance or silver axis tile provides excellent contact and reduces electrical energy loss.
Widely used in Household appliances,auto,and other metal working industries.

Item Model	FN-50	FN-75	FN-100	FN-150	FN-200	FN-250
Rated capacity KVA	50	75	100	150	200	250
Rated Primary voltage V	380	380	380	380	380	380
Rated frequency Hz	50/60	50/60	50/60	50/60	50/60	50/60
Maximum short current A	13000	16000	18000	23000	26000	30000
Welding speed M/min	0.6-2	0.6-2	0.6-2	0.6-2	0.6-2	0.6-2
Electrode pressure N	4700	6280	6280	12000	12000	12000
Motor power resource V	3-380V	3-380V	3-380V	3-380V	3-380V	3-380V
Electrode stroke mm	80	80	80	100	100	100
Welding capability (Stainless steel) mm	0.8+0.8	1.0+1.0	1.1+1.1	1.3+1.3	1.8+1.8	2.0+2.0

Filter Mesh Cylinder Strainer Tube Longitudinal Seam Welding Machine 4

Filter Mesh Cylinder Strainer Tube Longitudinal Seam Welding Machine 5

Filter Mesh Cylinder Strainer Tube Longitudinal Seam Welding Machine 6

Filter Mesh Cylinder Strainer Tube Longitudinal Seam Welding Machine 7

Filter Mesh Cylinder Strainer Tube Longitudinal Seam Welding Machine 8

Filter Mesh Cylinder Strainer Tube Longitudinal Seam Welding Machine 9

Filter Mesh Cylinder Strainer Tube Longitudinal Seam Welding Machine 10

Q Are you a trading company or a factory?
A We are an integrated industry and trade, and have our own factory.

Q Where is your factory located?
A Our factory is located in Songjiang district, Shanghai of China. In addition, we also have factories in Dongguan and Ningbo.

Q Can you customize the machine?
A We support OEM/ODM service and can customize the machine according to your requirements.

Q What is the MOQ?
A According to the customer's requirements.

Q What are your services during the purchase process?
A Pre-sales: Visit the factory, Technical solutions and program design services, Proofing services, Sample testing services.
On-sales: Technical training, Installation and commissioning services.
After-sales: Free non-wearable parts, Repair service, Video technical support, Online remote guidance.

Q How long is your warranty period?
A We offer a one-year warranty.

Q What is the payment terms?
A We ship with full payment, and we can negotiate payment terms.

Q How long is the delivery time?
A Delivery time for standard machines: 7-15 working days
Delivery time for customized machines: According to the degree of customization, about 1-3 months

Q Can you provide samples?
A We provide sampling service, but you need to send us the sample by courier.
