Steel Panel Seam Welding Machine Water Cooling Customization

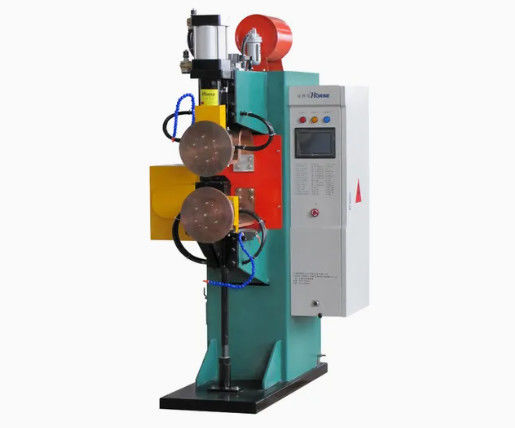

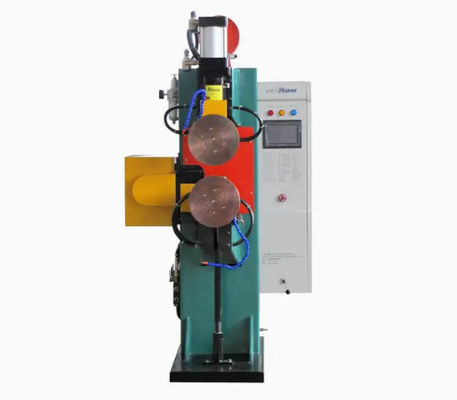

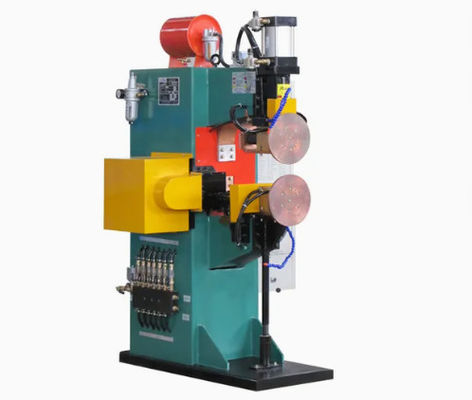

Large Image : Steel Panel Seam Welding Machine Water Cooling Customization

Product Details:

Place of Origin:	China
Brand Name:	Trintfar
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	3000~10000
Packaging Details:	Wooden brackets/wooden cases
Delivery Time:	60~90
Payment Terms:	L/C, D/A, D/P, T/T

Contact Now

Steel Panel Seam Welding Machine Water Cooling Customization

Description

Customization::

Available

Cooling Way::

Water Cooling

Control:

Semi-Automatic

Highlight:

Steel Panel Seam Welding Machine

Customization Steel Panel Seam Welding Machine

Water Cooling Seam Welding Machine

Product Description

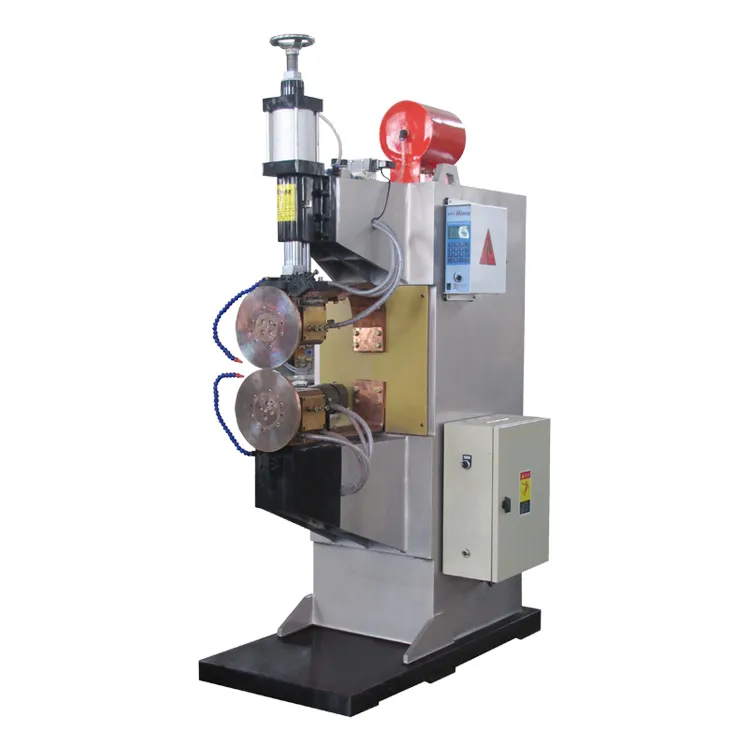

Steel Panel Seam Welding Machine Water Cooling Customization 0

Product Description

Steel Panel Seam Welding Machine Water Cooling Customization 1

Steel Panel Seam Welding Machine Water Cooling Customization 2

Features:

3phase regulator controls the welding speed uniformly and without jerks.
Longitudinal and horizontal welding make it possible for various jobs and working conditions.
Robust structure capable to withstand heat and maintain welding performance.

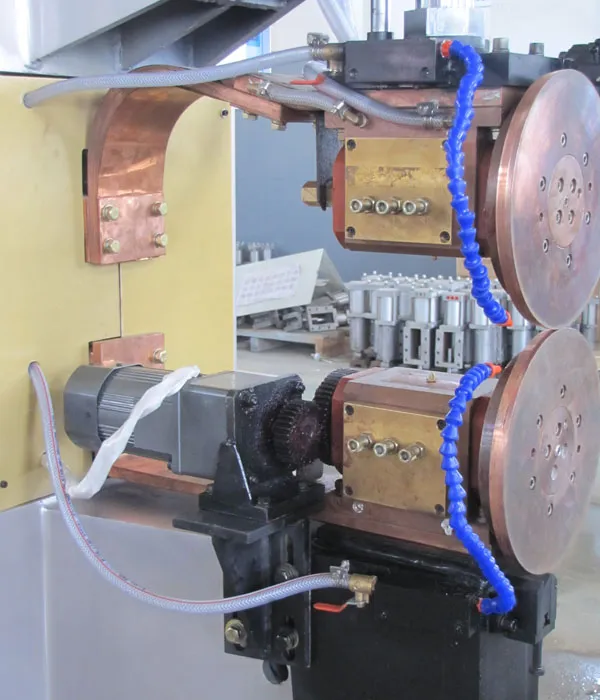

The rotation conductance or silver axis tile provides excellent contact and reduces electrical energy loss.
Widely used in Household appliances,auto,and other metal working industries.

Item Model	FN-50	FN-75	FN-100	FN-150	FN-200	FN-250
Rated capacity KVA	50	75	100	150	200	250
Rated Primary voltage V	380	380	380	380	380	380
Rated frequency Hz	50/60	50/60	50/60	50/60	50/60	50/60
Maximum short current A	13000	16000	18000	23000	26000	30000
Welding speed M/min	0.6-2	0.6-2	0.6-2	0.6-2	0.6-2	0.6-2
Electrode pressure N	4700	6280	6280	12000	12000	12000
Motor power resource V	3-380V	3-380V	3-380V	3-380V	3-380V	3-380V
Electrode stroke mm	80	80	80	100	100	100
Welding capability (Stainless steel) mm	0.8+0.8	1.0+1.0	1.1+1.1	1.3+1.3	1.8+1.8	2.0+2.0

Steel Panel Seam Welding Machine Water Cooling Customization 3

Steel Panel Seam Welding Machine Water Cooling Customization 4

Steel Panel Seam Welding Machine Water Cooling Customization 5

Steel Panel Seam Welding Machine Water Cooling Customization 6

Steel Panel Seam Welding Machine Water Cooling Customization 7

Steel Panel Seam Welding Machine Water Cooling Customization 8

Steel Panel Seam Welding Machine Water Cooling Customization 9

Q Are you a trading company or a factory?
A We are an integrated industry and trade, and have our own factory.

Q Where is your factory located?
A Our factory is located in Songjiang district, Shanghai of China. In addition, we also have factories in Dongguan and Ningbo.

Q Can you customize the machine?
A We support OEM/ODM service and can customize the machine according to your requirements.

Q What is the MOQ?
A According to the customer's requirements.

Q What are your services during the purchase process?
A Pre-sales: Visit the factory, Technical solutions and program design services, Proofing services, Sample testing services.
On-sales: Technical training, Installation and commissioning services.
After-sales: Free non-wearable parts, Repair service, Video technical support, Online remote guidance.

Q How long is your warranty period?
A We offer a one-year warranty.

Q What is the payment terms?
A We ship with full payment, and we can negotiate payment terms.

Q How long is the delivery time?
A Delivery time for standard machines: 7-15 working days
Delivery time for customized machines: According to the degree of customization, about 1-3 months

Q Can you provide samples?
A We provide sampling service, but you need to send us the sample by courier.
