25s-40s/Pcs Oven Production Line for Polishing Machines

25s-40s/Pcs Oven Production Line for Polishing Machines
25s-40s/Pcs Oven Production Line for Polishing Machines 25s-40s/Pcs Oven Production Line for Polishing Machines 25s-40s/Pcs Oven Production Line for Polishing Machines

Large Image :  25s-40s/Pcs Oven Production Line for Polishing Machines

Product Details:
Place of Origin: China
Brand Name: Trintfar
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10000~80000
Packaging Details: Wooden brackets/wooden cases
Delivery Time: 90~120
Payment Terms: L/C, D/A, D/P, T/T

25s-40s/Pcs Oven Production Line for Polishing Machines

Description
Machinery Capacity: 25s-40s/Pcs Precision Welding: Double Welding Heads For Consistent Results
Robust Build: Durable, Handles Heavy Production Demands Advanced Automation: Fully Automatic, Reducing Labor And Time
Versatile Compatibility: Works With Metal Cutting,engraving, Forging, And Polishing Machines.
Highlight:

40s/Pcs Oven Production Line

,

Oven Production Line

PRODUCT DESCRIPTIONS

Workflow

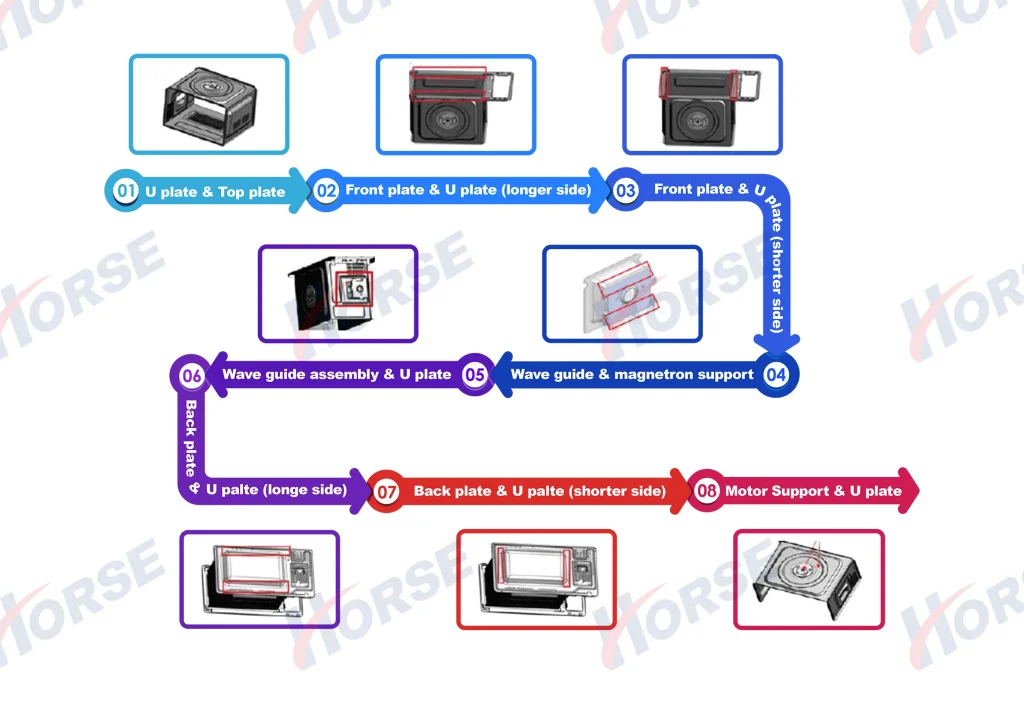

Work flow:U plate & Top plate → Front plate & U plate (longer side) → Front plate & U plate (shorter side) → Wave guide & magnetron support → Wave guide assembly & U plate → Back plate & U palte (longe side) → Back plate & U palte (shorter side) → Motor Support & U plate

Main equipments


25s-40s/Pcs Oven Production Line for Polishing Machines 1

U plate and top plate welding

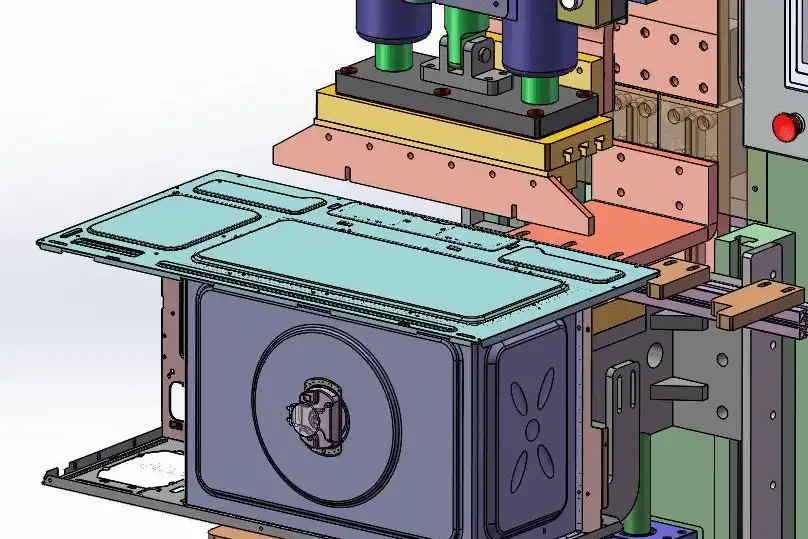

Equipment model: 2xDR-20000J-2C

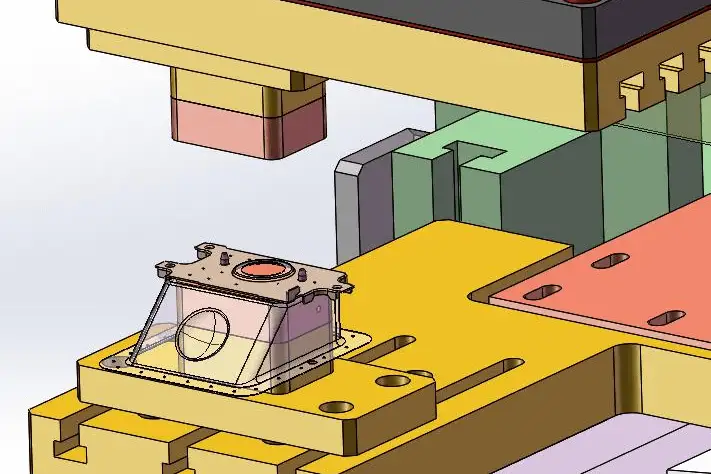

U board and front board short side welding

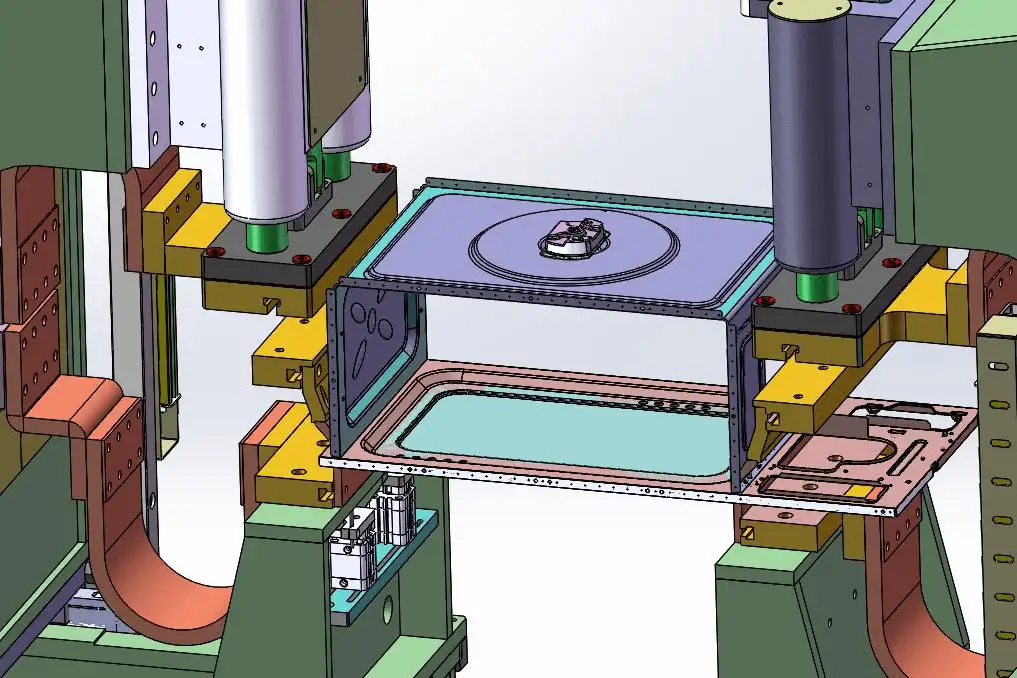

Equipment model:2xDR-13000J-2C

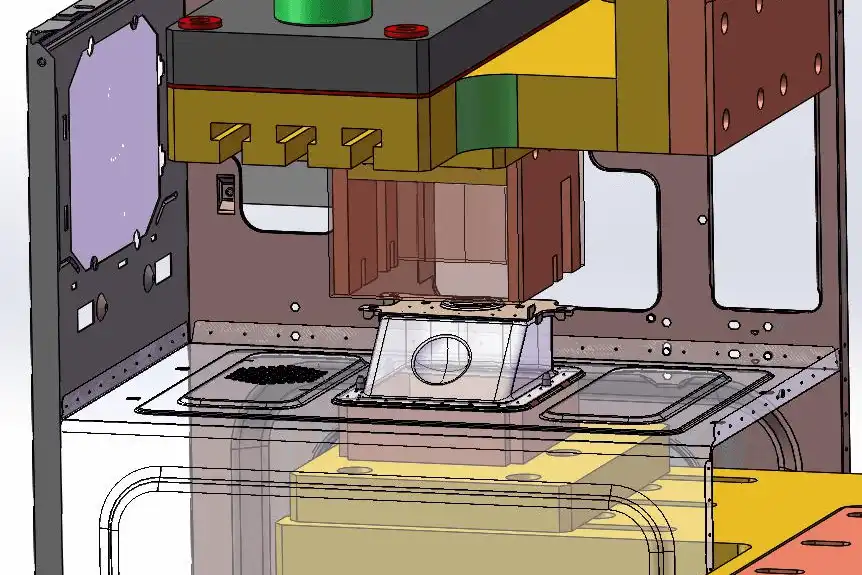

25s-40s/Pcs Oven Production Line for Polishing Machines 4
25s-40s/Pcs Oven Production Line for Polishing Machines 5

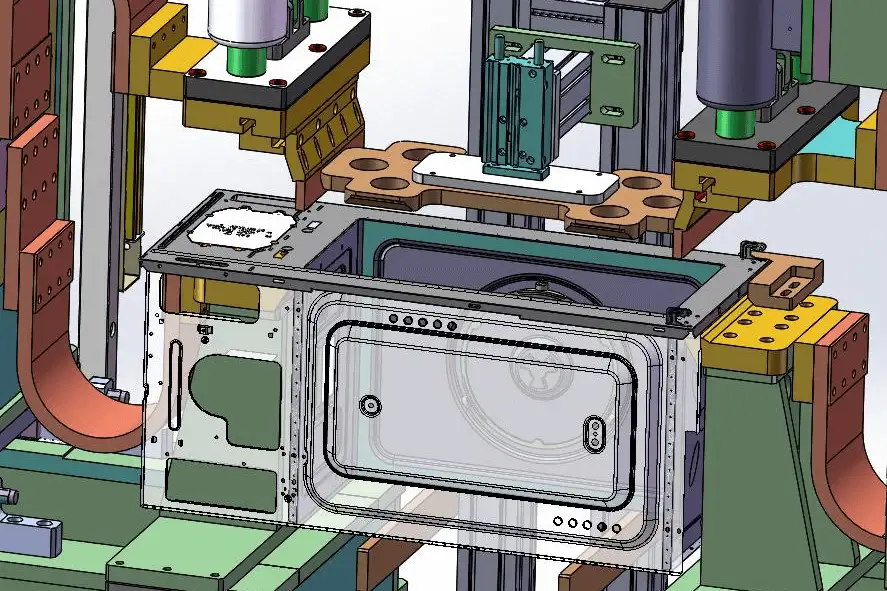

U board and front board long side welding

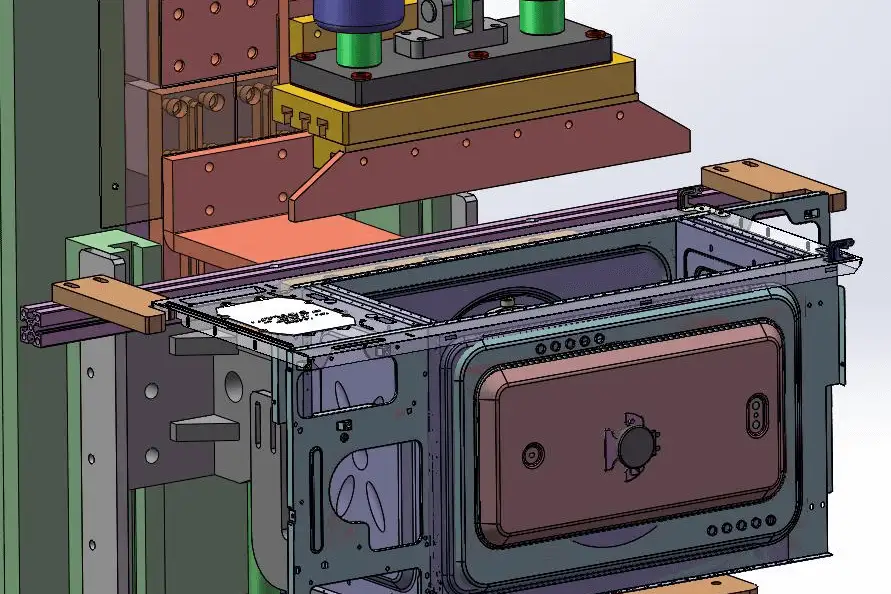

Equipment model:DR-20000J-1C

Waveguide Box and Magnetron Welding

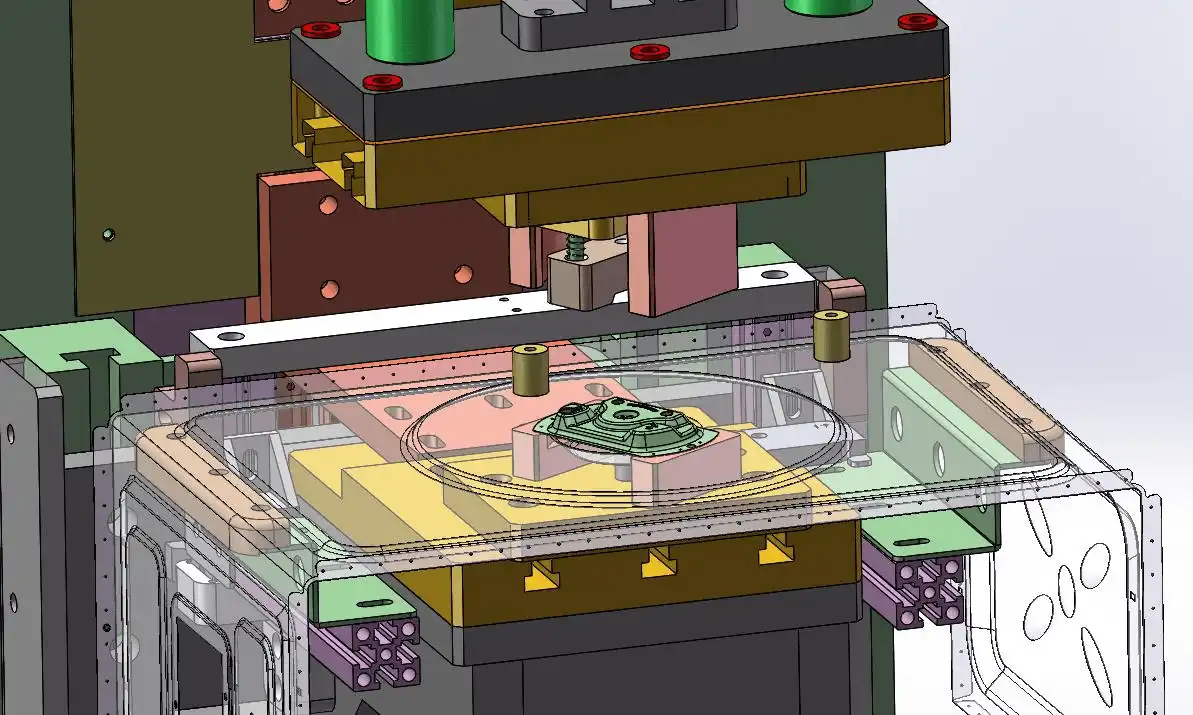

Equipment model:DR-30000J-1C

25s-40s/Pcs Oven Production Line for Polishing Machines 8

Waveguide Assembly and U Plate Welding

Equipment model:DR-30000J-1C

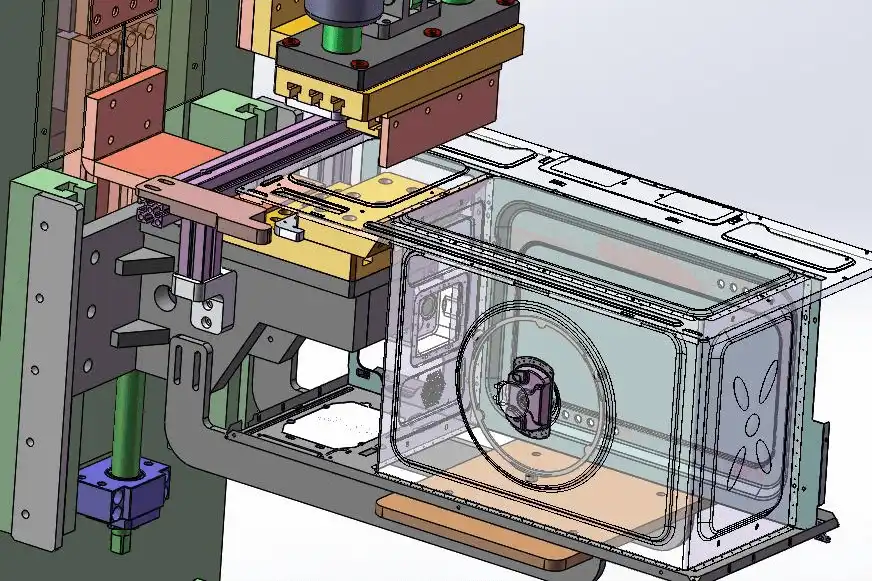

welding the long side of the back plate with the U plate

Equipment model:DR-20000J-1C

25s-40s/Pcs Oven Production Line for Polishing Machines 12
25s-40s/Pcs Oven Production Line for Polishing Machines 13

short side of the back plate and U plate welding

Equipment model:DR-13000J-1C

motor support welding

Equipment model: DR-13000J-1C

25s-40s/Pcs Oven Production Line for Polishing Machines 16

Other informations



Product Details

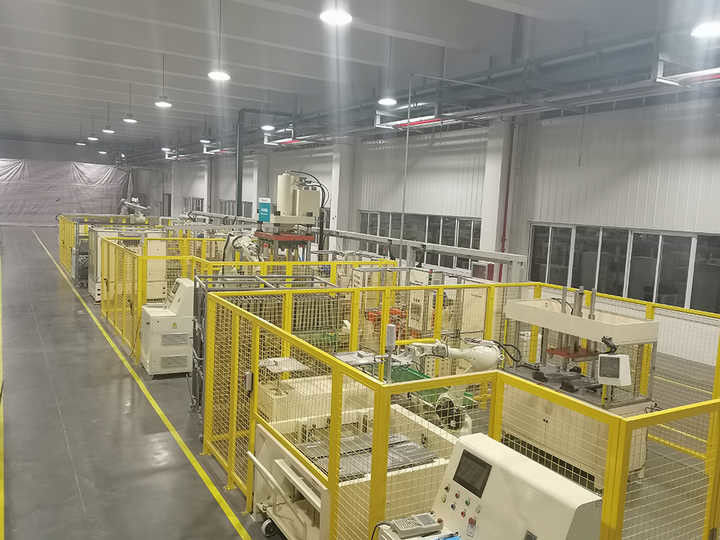

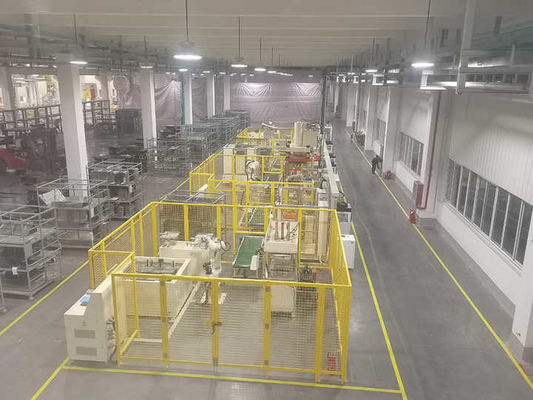

Oven Production Line Layout Diagram

25s-40s/Pcs Oven Production Line for Polishing Machines 17

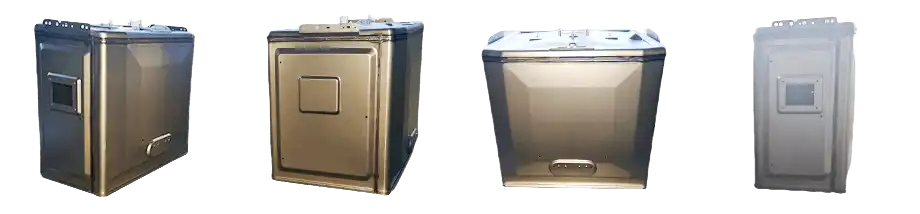

Production Results

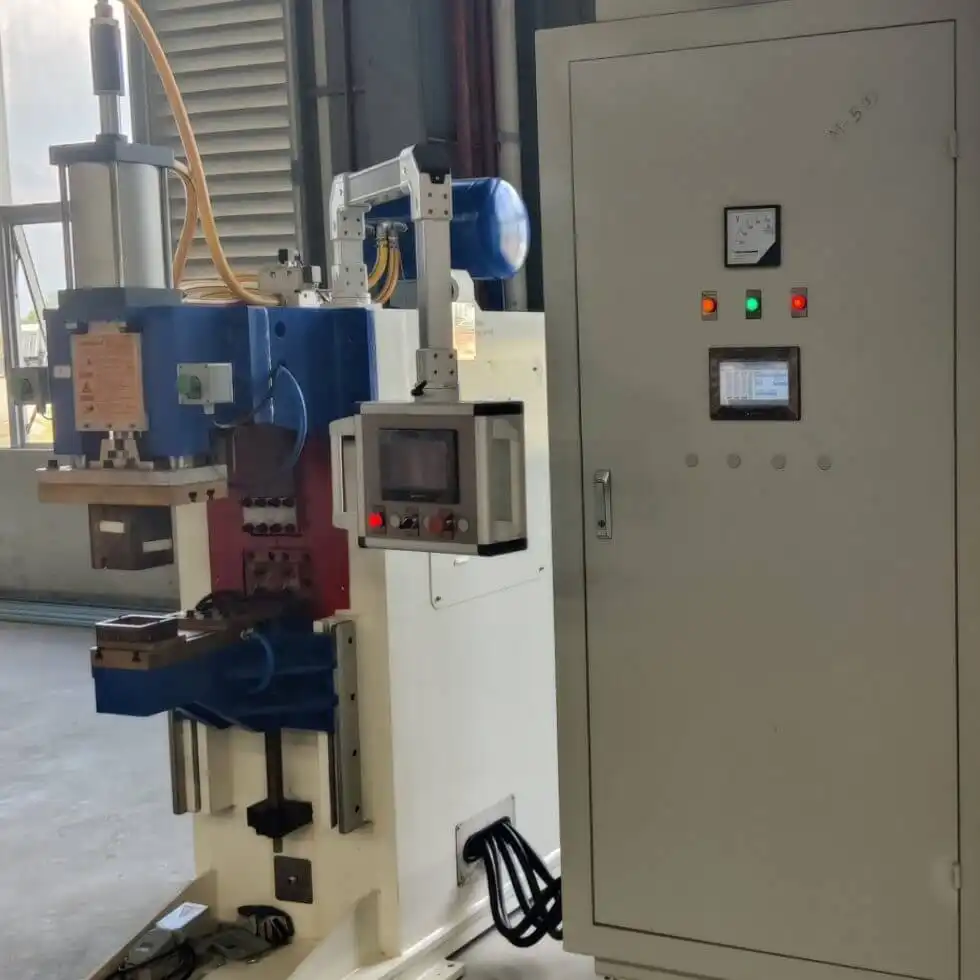

Basic Structure of DR-20000J Capacitor Energy Storage Spot Welding Machine

Components:
Frame, Pressurizing Mechanism, Water Cooling System, Welding Circuit, Capacitor Power Supply, Control System, Body, Welding Cylinder, Electrodes, Cooling Circuit, Monitoring Device, and Safety Mechanism.

  1. Frame:
    • C-frame structure, high-quality steel, and section steel.
    • Precision machining and heat treatment for rigidity and accuracy.
  2. Pressurizing Mechanism:
    • Vertical pressure type with self-lubricating bearings for better performance.
    • Minimizes electrode impact, preventing damage and wear.
  3. Pneumatic System:
    • Includes Japanese “SMC” solenoid valves, Taiwanese air processors, and oil-free cylinders.
    • Gas storage tank stabilizes pressure.
  4. Discharge Transformer & Welding Circuit:
    • Uses Wugang silicon steel sheets, and precision copper casting.
    • Soft copper tape and electrodes in series.
  5. Main Control System:
    • Mitsubishi PLC and HMI.
    • Manual, automatic, and charging modes.
    • Adjustable parameters via touch screen (voltage, pressure time).
  6. Welding Controller:
    • Fast charging/discharging via microprocessor.
    • Compatible with old and new capacitors, it extends capacitor life.
    • Protection modes for fault prevention.
    • Automatic adjustment for capacitor voltage and leakage current.
    • Fault detection for overcharge, discharge, and capacitor errors.
    • Stores up to 5 welding specs, count 9999 welds, real-time voltage detection (error ≤ 1%).

Equipment Configuration List

No Station Name Model Quantity Unit
1 Motor bracket welding DR-13000J-1C 1 Set
2 U board and top board welding 2xDR-20000J-2C 1 Set
3 U board and front board short-side welding 2xDR-13000J-2C 1 Set
4 U board and the long side of the front board are welded DR-20000J-1C 1 Set
5 Waveguide box and magnetron welding DR-30000J-1C 1 Set
6 Waveguide assembly and U-board welding DR-30000J-1C 1 Set
7 The long side of the back plate is welded to the U plate DR-20000J-1C 1 Set
8 The short side of the back plate is welded to the U plate DR-13000J-1C 1 Set

Contact Details
Shanghai Trintfar Intelligent Equipment Co., Ltd.

Contact Person: Mr. tianwei

Tel: +8615216883036
