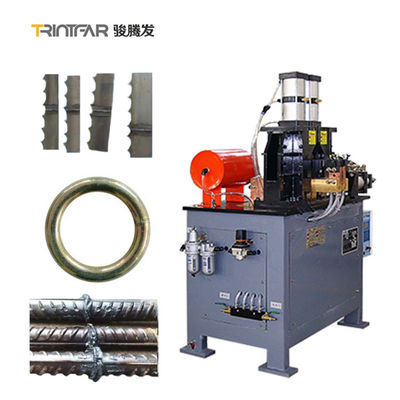

Auto Flash Butt Fusion Welder Welding Machine with Pulse Width of 0.5-20ms

Auto Flash Butt Fusion Welder Welding Machine with Pulse Width of 0.5-20ms
Auto Flash Butt Fusion Welder Welding Machine with Pulse Width of 0.5-20ms
Auto Flash Butt Fusion Welder Welding Machine with Pulse Width of 0.5-20ms Auto Flash Butt Fusion Welder Welding Machine with Pulse Width of 0.5-20ms

Large Image :  Auto Flash Butt Fusion Welder Welding Machine with Pulse Width of 0.5-20ms

Product Details:
Place of Origin: China
Brand Name: TRINTFAR
Certification: CE
Model Number: UN-50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 5000-8000 set
Packaging Details: wooden box
Delivery Time: Within 90 days of the final payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 500 per year
Contact Now

Auto Flash Butt Fusion Welder Welding Machine with Pulse Width of 0.5-20ms

Description
Name: Auto Flash Butt Fusion Welder Welding Machine After-sales Service Provided: Online Support
Certification: CE Pulse Width: 0.5~20ms
Condition: New Warranty: 1 Year
Focal Spot Diameter: 0.2mm~3mm
Highlight:

Auto Flash Butt Fusion Welder

,

Auto Flash Butt Fusion Welding Machine

,

20ms Pulse Width Butt Fusion Welder

Auto flash butt fusion welder welding machine

Product description

High-power flash butt welder is to press the two ports of the butt welding parts with both ends of the electrode respectively. After electrization, the forging cylinder will push the two broken ports gradually according to the set speed. In the process of approaching the port, the current density of the first contact part is very high, and the metal lintel will be liquefied instantly and the metal splash will appear after blasting, which is flash. With the gradually close to the port, the point of contact gradually increased, and finally the whole end face are formed numerous liquid metal lintel, and constantly blasting, so that the end face heating to the critical point of plastic and liquid instant on the two end face with large forging force and pressure for a period of time, the two end face fusion together, forming a stable joint;Flash butt welding machine is mainly used for butt butt of the end face of parts. Butt butt materials include ordinary carbon steel, stainless steel, aluminum, brass, copper, aluminum strand, copper strand, copper and aluminum strand and the butt butt of dissimilar metals. The area of butt butt is up to 10000mm2, the weld can reach the strength of the base metal, and the efficiency is 5-10 times that of arc welding. It is generally required that the end face shape and section of the butt are the same, which can be used for plate, round bar, square bar, pipe fitting and profile. Widely used in wheel ring, tools, cutting tools, wire, wire mesh, window frame and other manufacturing industries.
Auto Flash Butt Fusion Welder Welding Machine with Pulse Width of 0.5-20ms 0
Specification


High Quality Steel Wire Butt Welding Machine Made in China
High Quality Steel Wire Butt Welding Machine Made in China
Item
Model
UN-25
UN-35
UN-50
UN-75
UN-100
UN-150
UN-200
Rated capacity
KVA

25

35

50

75

100

150

200
Rated Primary voltage
V

380

380

380

380

380

380

380
Rated frequency
Hz

50/60

50/60

50/60

50/60

50/60

50/60

50/60
Maximum short current
A

11000

13000

15000

22000

28000

32000

35000
Maximum clamping rate
N

3900

3900

3900

6100

6100

8000

8000
Maximum forging force
N

1500

1500

1500

2500

2500

3000

3000
Rated duty cycle
%

50

50

50

50

50

50

50




Auto Flash Butt Fusion Welder Welding Machine with Pulse Width of 0.5-20ms 3
Auto Flash Butt Fusion Welder Welding Machine with Pulse Width of 0.5-20ms 4
Auto Flash Butt Fusion Welder Welding Machine with Pulse Width of 0.5-20ms 5
