Product Details:
|

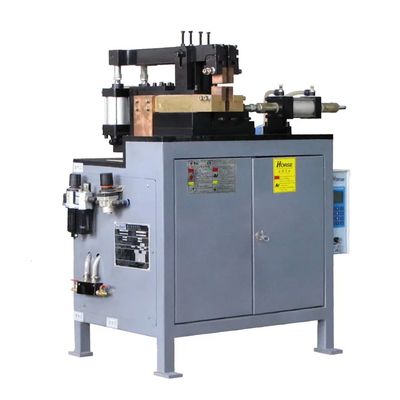

| Name: | Flash Butt Seal-Welding Machine For Band Saw Blade | After-sales Service Provided: | Online Support |
|---|---|---|---|
| Certification: | CE | Pulse Width: | 0.5~20ms |
| Condition: | New | Warranty: | 1 Year |
| Focal Spot Diameter: | 0.2mm~3mm | ||
| Highlight: | Butt Seal Welding Machine,Flash Butt Seal Welding Machine,Band Saw Blade Butt Welding Machine |
||
The welding is smooth, the copper plate can be fine-tuned, the copper plate can be removed, and it is convenient for grinding.
The welding firmness is good, and one machine can weld various specifications, with knife and band saw, and it is convenient to adjust.
The machine has a long service life, which is 1-2 times that of ordinary welding machines.
This welder is a special lever pressure type saw blade purpose welding machine,and during welding of saw blades,it needs no weld paste or solder.
It is characterized by an extremely short welding duration and the low energy consumption,and in merely several seconds after being energized,it can surely weld saw blades together.
It is low in cost and the quality of the resulted weld is much superior to that generated by traditional silver soldering or oxygen welding procedures.
|
Item
Model
|
UN-25
|
UN-35
|
UN-50
|
UN-75
|
UN-100
|
UN-150
|
UN-200
|
|
Rated capacity
KVA
|
25
|
35
|
50
|
75
|
100
|
150
|
200
|
|
Rated Primary voltage
V
|
380
|
380
|
380
|
380
|
380
|
380
|
380
|
|
Rated frequency
Hz
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
|
Maximum short current
A
|
11000
|
13000
|
15000
|
22000
|
28000
|
32000
|
35000
|
|
Maximum clamping rate
N
|
3900
|
3900
|
3900
|
6100
|
6100
|
8000
|
8000
|
|
Maximum forging force
N
|
1500
|
1500
|
1500
|
2500
|
2500
|
3000
|
3000
|
|
Rated duty cycle
%
|
50
|
50
|
50
|
50
|
50
|
50
|
50
|
