Brass Copper Wire Butt Welding Machine For Band Saw Blade

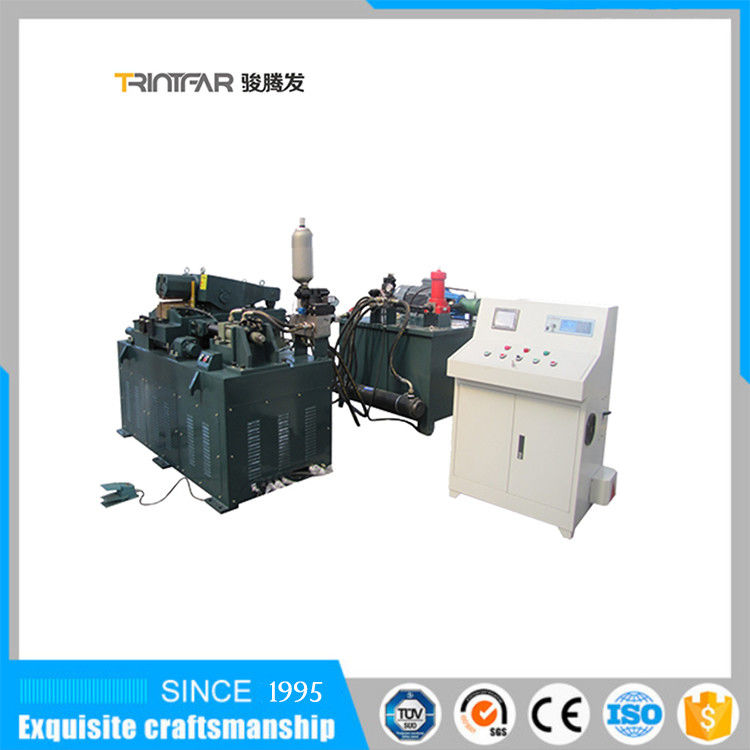

Large Image : Brass Copper Wire Butt Welding Machine For Band Saw Blade

Product Details:

Place of Origin:	China
Brand Name:	TRINTFAR
Certification:	CE
Model Number:	UN-150

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 2500-4500 set
Packaging Details:	wooden box
Delivery Time:	Within 90 days of the final payment
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	500 per year

Contact Now

Brass Copper Wire Butt Welding Machine For Band Saw Blade

Description

Name:	New Condenser Wire Butt Welding Machine	Welding Materials::	Band Saw Blade
Material:	Steel And Copper	After-sales Service Provided:	Video Technical Support
Certification:	ISO CE CCC	Materials::	Aluminum,Copper,Brass
Type:	Flash Butt Welder	Input Voltage:	380V
Highlight:	Brass Butt Welding Machine , Butt Welding Machine CCC , Saw Blade wire welding machine

New Condenser Wire Butt Welding Machine

Pneumatic butt welding machine, also known as resistance butt welding machine, uses the resistance between the contact surfaces of the two workpieces to instantly pass a low voltage and a large current to make the contact surfaces of the two butt metals instantly heat to melt and fuse. No need to upgrade any solder, high efficiency and low cost.

The butt welding machine adopts high-performance pneumatic components, and the core shaft and guide shaft are all made of stainless steel. The welding controller is controlled by a data integrated control system or a microcomputer resistor controller to set up main parameters such as charging time, welding time, delay, rest, welding current, etc. It can be equipped with double foot pedal, double single pulse, double current Control function, and its thyristor temperature increase supervision function. A variety of welding controllers satisfy different functions and can be used for one machine.

The secondary internal pressure test of the welding transformer is used for forced cooling, and it is made of high-permeability raw materials with a lifting design, low full-load loss, strong and stable output power and long life.

Specification

Item Model	UN-25	UN-35	UN-50	UN-75	UN-100	UN-150	UN-200
Rated capacity KVA	25	35	50	75	100	150	200
Rated Primary voltage V	380	380	380	380	380	380	380
Rated frequency Hz	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Maximum short current A	11000	13000	15000	22000	28000	32000	35000
Maximum clamping rate N	3900	3900	3900	6100	6100	8000	8000
Maximum forging force N	1500	1500	1500	2500	2500	3000	3000
Rated duty cycle %	50	50	50	50	50	50	50

Brass Copper Wire Butt Welding Machine For Band Saw Blade 0
