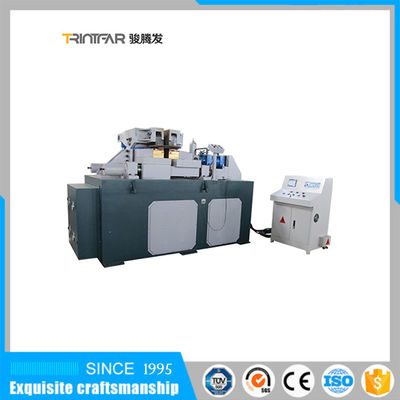

Ac Resistance Aluminium Sheet Welding Armature Automatic Mesh Wire Machine

Ac Resistance Aluminium Sheet Welding Armature Automatic Mesh Wire Machine
Ac Resistance Aluminium Sheet Welding Armature Automatic Mesh Wire Machine
Ac Resistance Aluminium Sheet Welding Armature Automatic Mesh Wire Machine Ac Resistance Aluminium Sheet Welding Armature Automatic Mesh Wire Machine

Large Image :  Ac Resistance Aluminium Sheet Welding Armature Automatic Mesh Wire Machine

Product Details:
Place of Origin: China
Brand Name: TRINTFAR
Certification: CE
Model Number: UN-150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 2500-4500 set
Packaging Details: wooden box
Delivery Time: Within 90 days of the final payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 500 per year
Contact Now

Ac Resistance Aluminium Sheet Welding Armature Automatic Mesh Wire Machine

Description
Name: Ac Resistance Advanced Aluminium Sheet Armature Automatic Mesh Capacitor Discharge Condenser Wire Butt Welding Machine Welding Materials:: Band Saw Blade
Frequency Range:: Low Frequency After-sales Service Provided: Video Technical Support
Certification: ISO CE CCC Materials:: Aluminum,Copper,Brass
Condition: New Input Voltage: 380V
Highlight:

Ac Resistanceac spot welding machine

,

Low Frequency ac spot welding machine

,

380V aluminium sheet welding equipment

Ac Resistance Advanced Aluminium Sheet Armature Automatic Mesh Capacitor Discharge Condenser Wire Butt Welding Machine


Main Feature
1. The butt process starts when the two workpieces to be welded which are clamped by welding jams still not meet each other.
2. During the subsequence,move the welding jaws together slowly,the welding current density will increase,then the metal material in the gap between the jaws becomes molten,at the same time a shower of sparks also being emitted.
3. As the cross-sectional area in the welding becomes extremely hot,the motion is accelerated.
4. The flashing also makes the surfaces to welded together totally.

Application
1. All kinds of dinnerware,cooking knives and table knives;
2. Bicycle rim,motorbike rim,car rim,or similar strip rings;
3. Various metal wire and steel strip,construction steel bar and rebar;
4. Round,Square and Rectangular tubes welding into "L" or "T" shape;
5. Mitre welding of door and window frames.
Specification
Item
Model
UN-25
UN-35
UN-50
UN-75
UN-100
UN-150
UN-200
Rated capacity
KVA

25

35

50

75

100

150

200
Rated Primary voltage
V

380

380

380

380

380

380

380
Rated frequency
Hz

50/60

50/60

50/60

50/60

50/60

50/60

50/60
Maximum short current
A

11000

13000

15000

22000

28000

32000

35000
Maximum clamping rate
N

3900

3900

3900

6100

6100

8000

8000
Maximum forging force
N

1500

1500

1500

2500

2500

3000

3000
Rated duty cycle
%

50

50

50

50

50

50

50





Ac Resistance Aluminium Sheet Welding Armature Automatic Mesh Wire Machine 0

Ac Resistance Aluminium Sheet Welding Armature Automatic Mesh Wire Machine 1
Ac Resistance Aluminium Sheet Welding Armature Automatic Mesh Wire Machine 2
Ac Resistance Aluminium Sheet Welding Armature Automatic Mesh Wire Machine 3
Ac Resistance Aluminium Sheet Welding Armature Automatic Mesh Wire Machine 4
Ac Resistance Aluminium Sheet Welding Armature Automatic Mesh Wire Machine 5
Ac Resistance Aluminium Sheet Welding Armature Automatic Mesh Wire Machine 6
