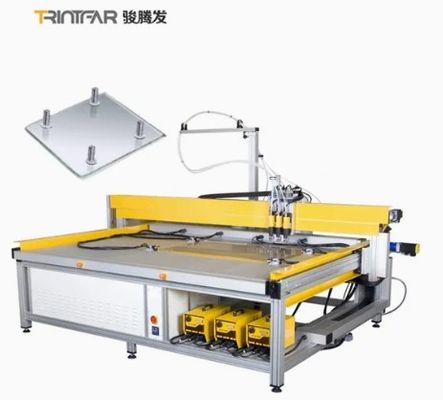

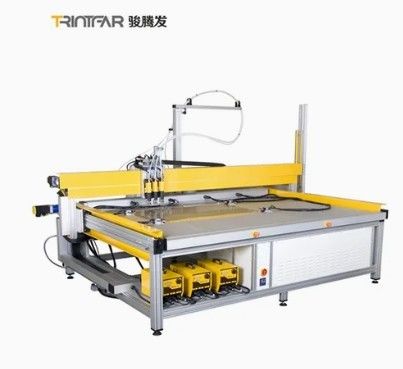

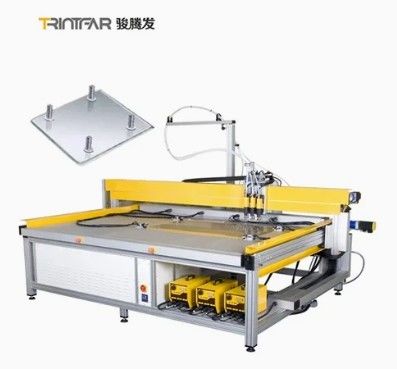

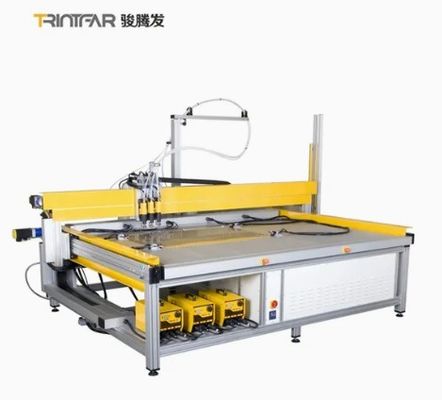

2200 mm, Aluminum alloy, Stainless steel, Copper, CNC, Hole-penetrating stud spot welding machine, High-speed type

Large Image : 2200 mm, Aluminum alloy, Stainless steel, Copper, CNC, Hole-penetrating stud spot welding machine, High-speed type

Product Details:

Place of Origin:	China
Brand Name:	TRINTFAR
Certification:	CE
Model Number:	LZ-80

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 5000-8000 set
Packaging Details:	wooden box
Delivery Time:	Within 90 days of the final payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	500 Per year

Contact Now

2200 mm, Aluminum alloy, Stainless steel, Copper, CNC, Hole-penetrating stud spot welding machine, High-speed type

Description

Product Name:	Aluminum Stainless Steel Copper High Speed CNC Stud Welding Machine	Function:	Automatic CNC Welding Machine
Usage:	Welding Small Stud M3-M10	Advantage:	High Welding Speed
Dimensions:	980mmx650mmx650mm	Voltage:	220/380V
Machine Type::	Welding Manipulator

Aluminum Stainless Steel Copper High Speed CNC Stud Welding Machine

Frame Structure

There are "Vertical Structure" and "Horizontal Structure" two different structures, global design is based on structure of
advanced foreign experience,combined with our rich design experience.
The machine is steel frame+Aluminium gantry structure, ensure the frame strength and running precision, efficiency and durable.
"Vertical structure" means that long-side direction is running direction of gantry, which mainly process less than length 2200mm work piece, lead screw+guide rail motion way.
"Horizontal structure" means that short-side direction is running direction of gantry, which mainly process more than length 2200mm, less than width 1200mm work piece, high-precision synchronous belt motion way.

Specification

Welding screw range	Diameter (D) M2~M80, Length (L) 8~35MM
Welding materials	Working material ,low carbon, stainless,copper,aluminium alloy and brass
X Axis movement range	Can be customized according to customer needs
Y Axis movement range	Can be customized according to customer needs
Welding gun lift range	80mm
positioning accuracy	+0.05mm
running speed	30m/min
Welding speed	15~20 studs/min

2200 mm, Aluminum alloy, Stainless steel, Copper, CNC, Hole-penetrating stud spot welding machine, High-speed type 0
